Product code: #ALL-003432

მედია კონვერტორი 100მბ 1310/1550ნმ 20კმ SC, Wintop

Wintop · WT-8110SB-11-20A

მედია კონვერტორი 100მბ 1310/1550ნმ 20კმ SC, Wintop

  • Port Speed10/100 Mbps
  • Data Rate10/100 Mbps
  • Fiber TypeSingle-mode
  • Max Distance20 km
29.83 ₾

VAT included

  • In stock
29.83 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

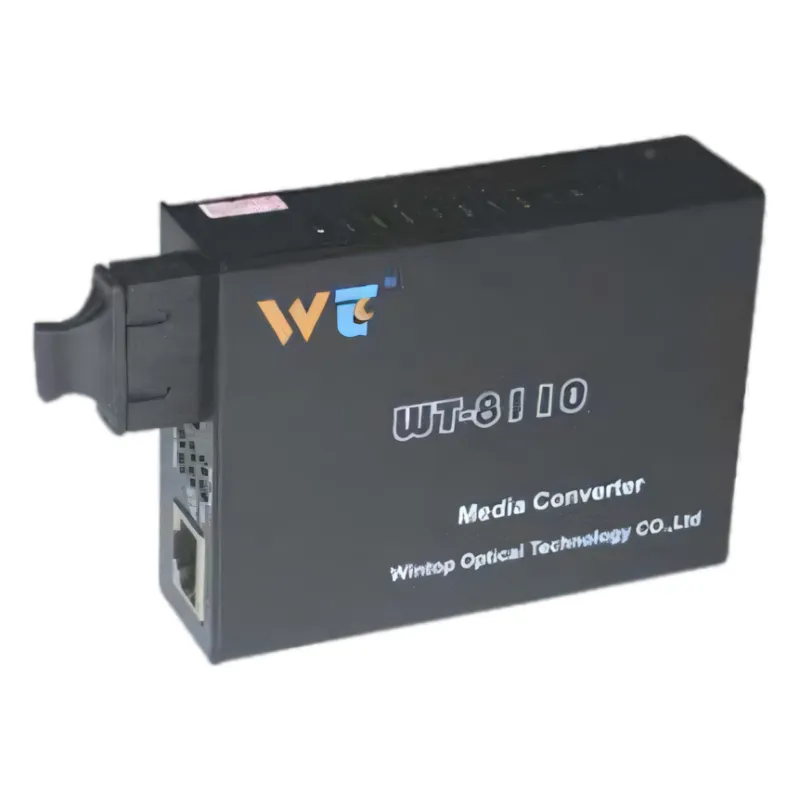

The Wintop WT-8110SB-11-20A is a media converter that links a copper Ethernet connection to a single-mode fiber link. It has 1 RJ45 port with 10/100Base-TX and 1 SC optical port with 100Base-FX, and it operates at 10/100 Mbps.

It uses WDM BiDi technology, so the fiber link runs over a single strand. The optical side transmits at 1310 nm and receives at 1550 nm, with a maximum distance of 20 km.

Key features:

  • 1 × 10/100Base-TX electrical port (RJ45) and 1 × 100Base-FX optical port
  • Port speed and data rate of 10/100 Mbps
  • SC connector for single-mode fiber
  • WDM BiDi single-fiber link, 1310 nm (TX) and 1550 nm (RX), up to 20 km
  • Transmit power of -12 … -8 dBm and receiver sensitivity of ≤ -36 dBm
  • Power consumption of 2.5 W
  • Operating temperature of 0 … +70 °C (32 … 158 °F)

Specifications 15

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Consumption
2.5 W

Ports & PoE

RJ45 ports
11 × 10/100Base-TX
Port Speed
10/100 Mbps
Optical Ports
1 × 100Base-FX

Performance

Data Rate
10/100 Mbps

Compliance

Standard
100Base-FX

Optical

Connector Type
SC
Fiber Type
Single-mode
Wavelength TX
1310 nm
Wavelength RX
1550 nm
Max Distance
20 km
Link Technology
WDM BiDi

Optical Power

TX Power
-12 … -8 dBm
RX Sensitivity
≤ -36 dBm

Physical

Operating Temperature
0 … +70 °C (32 … 158 °F)
