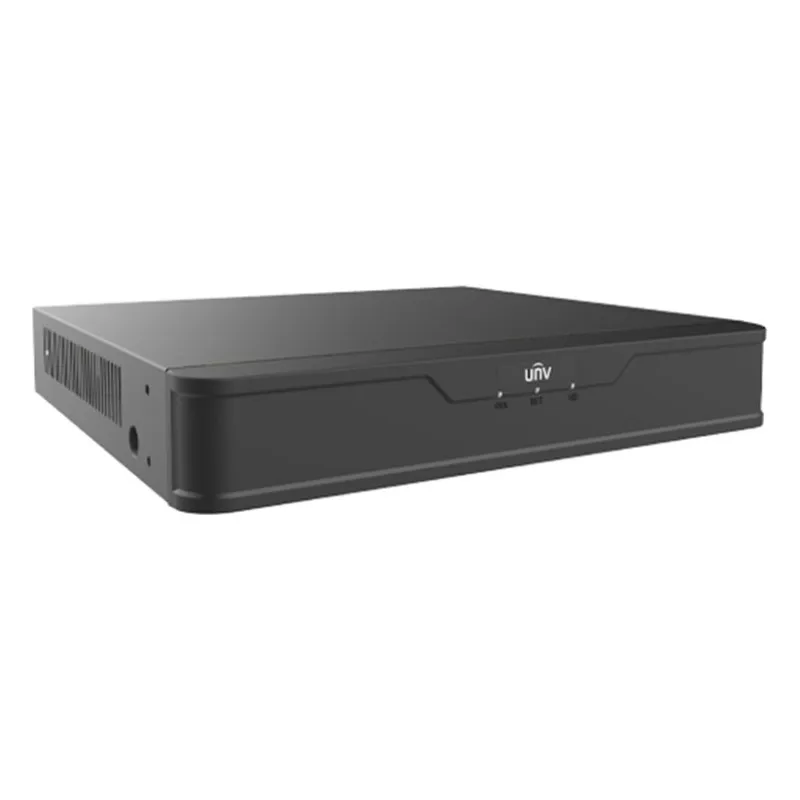

4-channel IP video recorder NVR - 1 hard drive, 4 PoE ports - Prime series

Network

Network Interface

1 × RJ-45, 10/100 Mbps

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

64 Mbps

ONVIF

Yes

Power & Protection

Power Input

48 VDC, 1.35 A

Power Consumption

10 W

Recording

Decoding capability

Ultra 265/H.265: 2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30;
H.264: 2 × 16MP (4800 × 2688)@30, 2 × 12MP@30, 2 × 4K@30, 4 × 5MP@30

Recorder Type

NVR

Channels

4

IP Channels

4

Recording Resolution

1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP, 8 MP (4K), 12 MP, 16 MP

Signal Support

IP

Recorder Compression

H.265

Storage

HDD Bays

1

Max. Capacity per Disk

up to 24 TB

Outputs & Audio

Video Output

HDMI + VGA

Audio Input

1 × RCA

Audio Output

1 channel RCA

Smart & Features

Alarm Input

No

Alarm Output

No

Ports & PoE

PoE Ports

4

Connectivity

Compatible software

Uniview EZView / EZStation

RS-485

No

USB Port

Rear: 1 × USB 2.0, 1 × USB 3.0

System Capacity

Max Users

128

Compliance

Certifications

CE, FCC, UL

Physical

Operating humidity

≤ 90 %

Operating Temperature

-10 … +55 °C (14 … 131 °F)

Dimensions

260 × 222 × 47 mm (10.24 × 8.74 × 1.85 in)

Weight

1.1 kg (2.43 lb)

Decoding

Decoding Format

Ultra 265, H.265, H.264

Decoding Capability Description

The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width

Network

Remote Users

128

Browser (Plugin)

IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4

Video/Audio Input

RCA Audio Input

1-ch

Video/Audio Output

HDMI Output

4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output

1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

RCA Audio Output

1-ch

Live View Display

1/4

Corridor Mode Screen

3/4

Snapshot

FTP/Schedule/Event Snapshot

4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)

Smart Function

Smart by IPC

Total 4-ch(Face Detection, SIP, UMD)

VCA Search

Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map

Alarm

General Alarm

Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm

IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

PoE

Supported Standard

IEEE 802.3at, IEEE 802.3af

PoE Interface

4 RJ45 10 M/100 M self-adaptive Ethernet Interface

Max. Power

Max 30 W for single port, Max 50 W in total

Audio

Compression

G.711A, G.711U

Two-way Audio

Two-way Audio

1-ch, RCA (Using the audio input and output)

Smart

VCA Detection by IPC

Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring)

GUI Language

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
