Product code: #ALL-003026

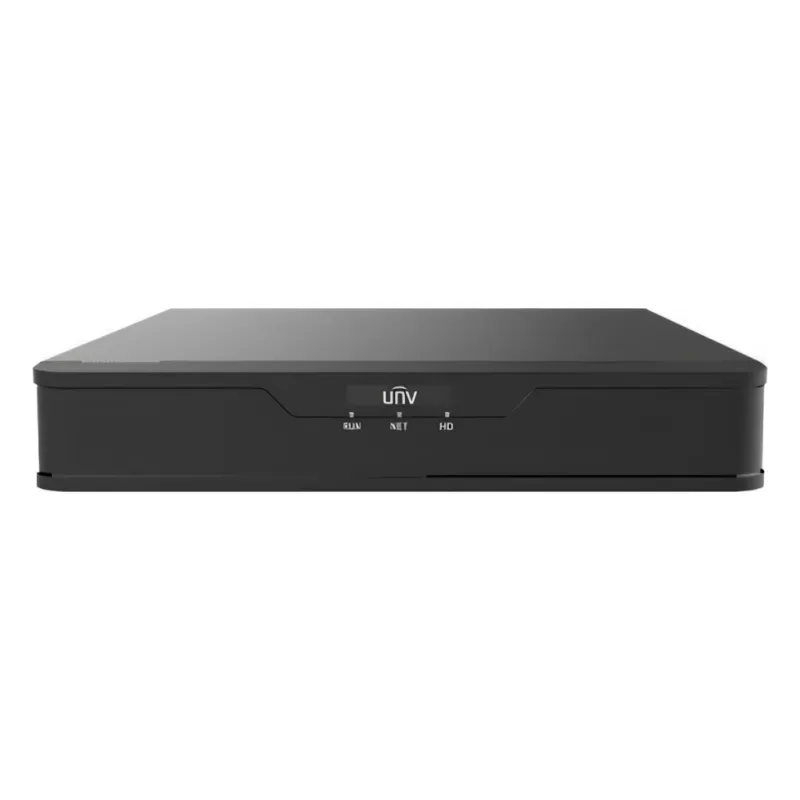

8-channel IP video recorder NVR - 1 hard drive - Easy series

Uniview · NVR301-08S3

8-channel IP video recorder NVR - 1 hard drive - Easy series

218.70 ₾

VAT included

  • In stock
218.70 ₾

VAT included

  • In stock
Quantity
1

Installation request
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Storage

For 8 cameras, 30 days: 11.2 TB

Calculate exactly

Compare with similar

Full comparison

Description

The Uniview NVR301-08S3 is an 8-channel IP network video recorder from the Easy series. It records from 8 IP channels, uses H.265 compression and has 1 HDD slot that accepts a disk of up to 10 TB. It has no PoE ports, so it does not power cameras.

The recorder shows video through HDMI and VGA outputs and can be managed with Uniview EZView and EZStation. It supports up to 128 users and works with IP signals only. Its interface is available in 21 languages, including English.

Key features:

  • 8 channels with recording resolutions from 1 MP (720p) up to 8 MP (4K), and playback of up to 8 channels
  • Decoding formats Ultra 265, H.265 and H.264, with audio decoding in G.711A and G.711U
  • HDMI output up to 4K (3840x2160)/30Hz and VGA output up to 1920x1080/60Hz, plus 1-ch 3.5mm audio output
  • Live view screen layouts of 1/4/6/8/9, with corridor mode layouts of 3/4/5/7/9
  • Smart functions on 4 channels in total: Face Detection, SIP and Ultra Motion Detection (UMD), with Behavior Search
  • Alarms for Motion Detection, Tampering, Human Body Detection and Video Loss, plus warnings for IP Conflict, Disk Offline and Hard Disk Full
  • RJ45 10/100M network interface, 2 × USB 2.0 ports at the rear, 12 VDC, 2 A power input and 5 W power consumption

Bought together

−5%

The kit is ready, adjust it as you need

Recorder + 3 accessories

Kit · 2 678.33 ₾2 819.33 ₾

Kit −141 ₾

Specifications 47

Open the spec sheet PDF(opens in a new tab)

Network

Network Interface
RJ45 10/100M
Incoming Bandwidth
64 Mbps
Outgoing Bandwidth
48 Mbps

Power & Protection

Power Input
12 VDC, 2 A
Power Consumption
5 W

Recording

Decoding capability
1 × 4K@30, 4 × 5MP@25, 4 × 4MP@25, 4 × 3MP@25, 6 × 1080P@30, 8 × 720P@30
Recorder Type
NVR
Channels
8
IP Channels
8
Recording Resolution
1 MP (720p), 2 MP (1080p), 3 MP, 4 MP, 5 MP, 6 MP, 8 MP (4K)
Signal Support
IP
Recorder Compression
H.265
Playback
Up to 8 channels

Storage

HDD Bays
1
Max. Capacity per Disk
up to 10 TB

Outputs & Audio

Video Output
HDMI + VGA

Smart & Features

Alarm Input
No
Alarm Output
No

Ports & PoE

PoE Ports
0

Connectivity

Compatible software
Uniview EZView / EZStation
RS-485
No
USB Port
Rear: 2 × USB 2.0

System Capacity

Max Users
128

Compliance

Certifications
CE, FCC, UL

Physical

Operating humidity
≤ 90 %
Operating Temperature
-10 … +55 °C (14 … 131 °F)
Dimensions
260 × 240 × 46 mm (10.24 × 9.45 × 1.81 in)
Weight
980 g (34.57 oz)

Full specification

Manufacturer data, 19 parameters

Decoding

Decoding Format
Ultra 265, H.265, H.264
Audio Compression
G.711A, G.711U

Network

Remote Users
128
Protocols
TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SMTP;RTSP
Browser (Plugin)
Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)

Video/Audio Output

HDMI Output
HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output
VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
3.5mm Audio Output
1-ch
Live View Display
1/4/6/8/9
Corridor Mode Screen
3/4/5/7/9

Snapshot

FTP/Schedule/Event Snapshot
1-ch snapshot, up to D1 resolution

Recording

Local Synchronous Playback
8-ch

Smart

VCA Detection by IPC
Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD)
VCA Search
Behavior Search
Smart by IPC
Total 4-ch(Face Detection, SIP, UMD)
Capacity of Snapshot Records
2 millions records for face snapshot

Alarm

General Alarm
Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
Alert Alarm
IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal

GUI Language

GUI Language
21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
