Product code: #ALL-002839
Hakel
Surge protector - HLSA25-275/4+0, Hakel
- IP / IK RatingIP20
795.31 ₾
VAT included
- In stock
795.31 ₾
VAT included
- In stock
Quantity
1
1 in stock
12-month warranty
Official warranty
Delivery: 1-5 days
All over Georgia
Returns 14 days
Shipping: Buyer
Installation and training
Nationwide
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)Compare with similar
Full comparison- Surge protector - HSA-275/2+0, HakelNominal discharge current (In 8/20) 20 kA123.97 ₾671.34 ₾ cheaper
- Surge protector - HSA-275/1+1, HakelNominal discharge current (In 8/20) 20 kA150.10 ₾645.21 ₾ cheaper
Specification | This product HLSA25-275/4+0 | ||
|---|---|---|---|
795.31 ₾ | 123.97 ₾ Best price | 150.10 ₾ | |
| Nominal discharge current (In 8/20)Nominal discharge current (In 8/20) | 25 kA | 20 kA | 20 kA |
| Number of polesNumber of poles | 4P | 2P | 2P |
| SPD test classSPD test class | T1, T2, T3 | T2, T3 | T2, T3 |
| Width in DIN modulesWidth in DIN modules | 8 | 2 | 2 |
Description

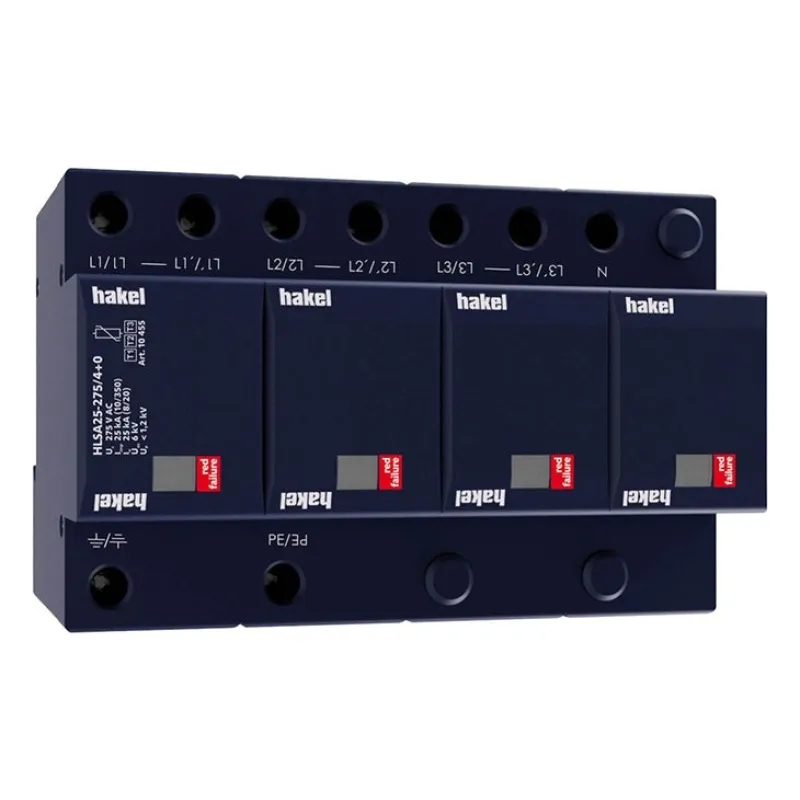

The Hakel HLSA25-275/4+0 is a surge protective device (SPD) for electrical installations. It has 4 poles and is rated for a maximum continuous voltage (Uc) of 275 V, with a voltage class of 230 V.
The device has a nominal discharge current (In) of 25 kA and a maximum discharge current (Imax) of 50 kA. It covers SPD classes T1, T2 and T3, and mounts on a 35 mm DIN rail.
Key features:
- Device type: surge protective device (SPD), 4P
- SPD classes: T1, T2, T3
- Maximum continuous voltage (Uc): 275 V
- Nominal discharge current (In): 25 kA
- Maximum discharge current (Imax): 50 kA
- Mounting: DIN rail 35 mm, width of 8 DIN modules
- Operating temperature: -40 … +70 °C (-40 … 158 °F), protection rating IP20, weight 1.12 kg (2.47 lb)
Specifications 12
Open the spec sheet PDF(opens in a new tab)Power & Protection
- IP / IK Rating
- IP20
Protection Features
- Max continuous operating voltage (Uc)
- 275 V
- Max discharge current (Imax)
- 50 kA
- Nominal discharge current (In 8/20)
- 25 kA
- Number of poles
- 4P
- Protection device type
- Surge arrester (SPD)
- SPD test class
- T1, T2, T3
Jacket & Fire Rating
- Voltage Rating
- 230 V
Physical
- Width in DIN modules
- 8
- Operating Temperature
- -40 … +70 °C (-40 … 158 °F)
- Mounting
- DIN rail 35 mm
- Weight
- 1.12 kg (2.47 lb)
