Product code: #ALL-005138
Dahua
HY-1330 სამისამართო გამმეორებელი პანელი. 24VDC. LCD (64X128). 75-115დბ(ა) (1მ)
98.04 ₾
VAT included
- In stock
98.04 ₾
VAT included
- In stock
Quantity
1
12-month warranty
Official warranty
Delivery: 1-5 days
All over Georgia
Returns 14 days
Shipping: Buyer
Installation and training
Nationwide
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)Compare with similar
Full comparison- HY-1022R addressable control panel, 1 fire loop, 254 addresses. 2x12VDC/5AhOperating Voltage 16V DC–28V DC1 540.60 ₾1 442.56 ₾ more expensive
- HY-1025R addressable control panel, with 2 loops, with 508 addresses, 2x12VDC/5AhOperating Voltage 16V DC–28V DC2 380.92 ₾2 282.88 ₾ more expensive
Specification | This product HY-1330 | ||
|---|---|---|---|
98.04 ₾ Best price | 1 540.60 ₾ | 2 380.92 ₾ | |
| Operating VoltageOperating Voltage | DC24V | 16V DC–28V DC | 16V DC–28V DC |
| IP / IK RatingIP / IK Rating | - | IP30 | IP30 |
| Devices per LoopDevices per Loop | - | 254 | 254 |
| Network PanelsNetwork Panels | - | 128 panels via RS-485 | 128 panels via RS-485 |
Description

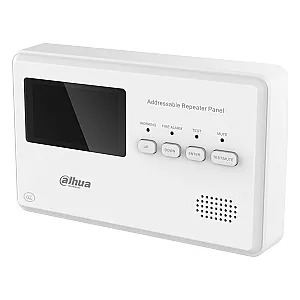

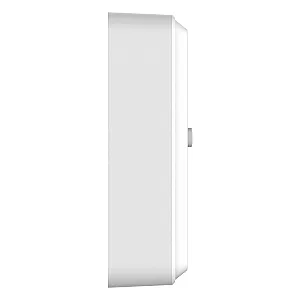

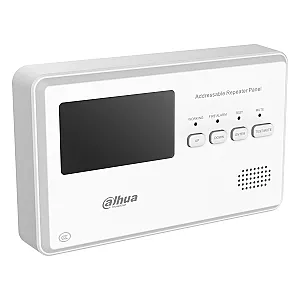

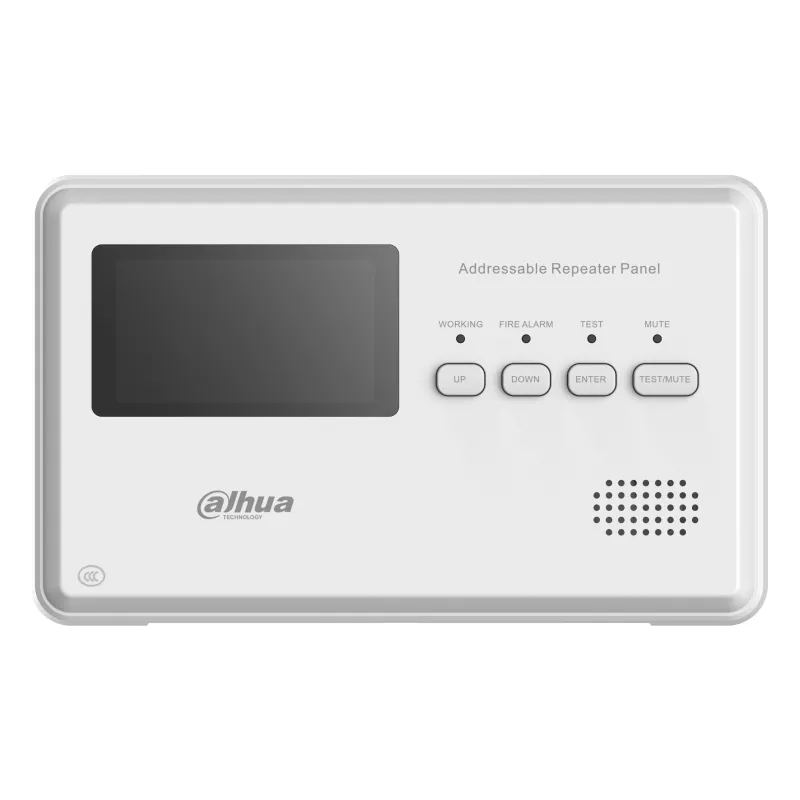

The Dahua HY-1330 is an addressable repeater panel with an LCD (64X128) display. It operates on a 24VDC supply and is listed under the EN54-2 standard.
The panel has a white housing measuring 180 × 110 × 32 mm (7.09 × 4.33 × 1.26 in) and weighs 270 g (9.52 oz). It works in temperatures from -10 to +40 °C (14 to 104 °F).
Key features:
- System type: addressable
- Display: LCD (64X128)
- Operating voltage: DC24V
- Standby current: ≤ 2mA; maximum working current: ≤ 10mA
- Wireless communication distance: 1500 m (4921.3 ft)
- Standard: EN54-2
- Operating temperature: -10 … +40 °C (14 … 104 °F)
Specifications 11
Open the spec sheet PDF(opens in a new tab)Power & Protection
- Operating Voltage
- DC24V
- Standby Current
- ≤ 2mA
- Current Draw
- Standby current: ≤ 2mA;
max. operating current: ≤ 10mA
Overview
- Wireless Range
- 1500 m (4921.3 ft)
- System Type
- Addressable
Siren & Notification
- Sound Output
- 65dB–115dB (A) @ 1m
Compliance
- Standards
- EN54-2
Physical
- Operating Temperature
- -10 … +40 °C (14 … 104 °F)
- Dimensions
- 180 × 110 × 32 mm (7.09 × 4.33 × 1.26 in)
- Weight
- 270 g (9.52 oz)
- Colour
- White
