Product code: #ALL-002019
Detnov

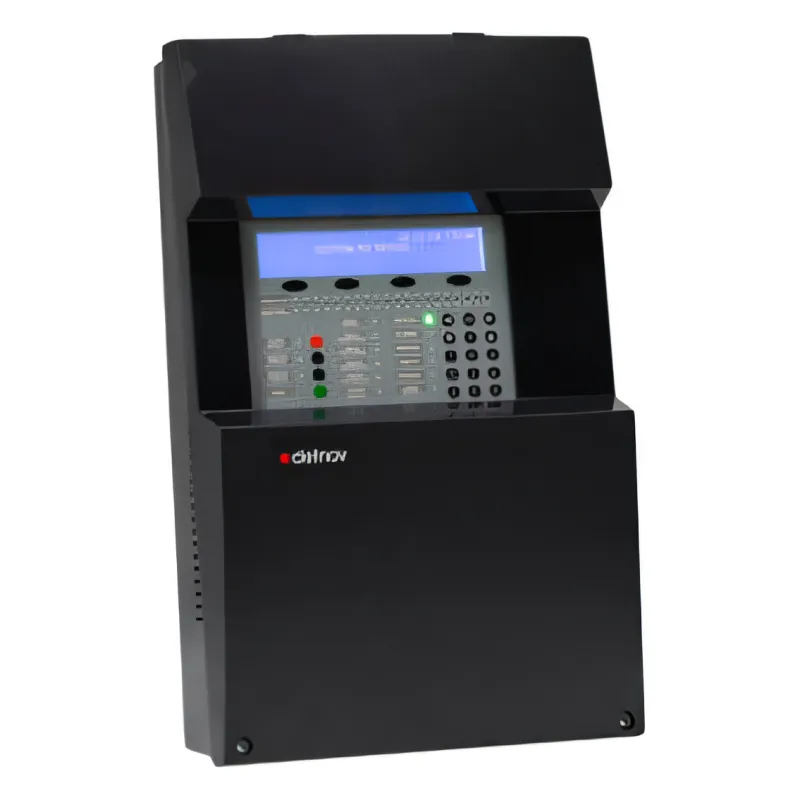

Fire alarm control panel, Detnov, CAD-150-1 MINI
- IP / IK RatingIP30
- Fire Device TypeAddressable fire alarm control panel, 1 loop
1 781 ₾
VAT included
- In stock
1 781 ₾
VAT included
- In stock
Quantity
1
12-month warranty
Official warranty
Delivery: 1-5 days
All over Georgia
Returns 14 days
Shipping: Buyer
Installation and training
Nationwide
PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)Compare with similar
Full comparison- Detnov, 4 LOOP ADDRESSABLE CONTROL PANEL CAD-150-4Standby Current 310 mA3 919 ₾2 138 ₾ more expensive
- Fire alarm control panel, Detnov, CAD-150-11 961 ₾180 ₾ more expensive
Specification | This product CAD-150-1 | ||
|---|---|---|---|
1 781 ₾ Best price | 3 919 ₾ | 1 961 ₾ | |
| Standby CurrentStandby Current | 165 mA @ 24 V DC | 310 mA | 165 mA @ 24 V DC |
| Fire Device TypeFire Device Type | Addressable fire alarm control panel, 1 loop | Addressable fire alarm control panel, 4 loops | Addressable fire alarm control panel, 1 loop |
| LoopsLoops | 1 | 4Best value | 1 |
| Sounder CircuitsSounder Circuits | 2 monitored outputs, 500 mA each | 2 supervised outputs, 500 mA each | 2 monitored outputs, 500 mA each |
Description
The Detnov CAD-150-1 MINI is an addressable fire alarm control panel with 1 loop. It supports up to 250 devices on the loop and has 2 monitored siren outputs rated at 500 mA each.
The panel can be networked with other units, up to 32 nodes made up of control panels or repeaters. It meets EN 54-2, EN 54-4 and EN 54-13 and carries the certificate 0370-CPR-0994. It is housed in a unit measuring 443 × 268 × 109 mm and weighing 1.9 kg.
Key features:
- Addressable system with 1 loop and 250 devices per loop
- 2 monitored siren outputs, 500 mA each
- Network support for up to 32 nodes (control panels or repeaters)
- Standards: EN 54-2, EN 54-4, EN 54-13; certification 0370-CPR-0994
- Mains voltage 90–264 V AC, 50/60 Hz; standby current 165 mA @ 24 V DC
- Battery capacity 2 x 7.5 Ah
- IP30 protection; operating temperature -5 … +50 °C (23 … 122 °F)
Specifications 15
Open the spec sheet PDF(opens in a new tab)Power & Protection
- IP / IK Rating
- IP30
- Mains Voltage
- 90–264 V AC 50/60 Hz
- Standby Current
- 165 mA @ 24 V DC
Overview
- Fire Device Type
- Addressable fire alarm control panel, 1 loop
- System Type
- Addressable
System Capacity
- Loops
- 1
- Devices per Loop
- 250
- Network Panels
- Up to 32 nodes (control panels or repeaters)
- Sounder Circuits
- 2 monitored outputs, 500 mA each
Compliance
- Standards
- EN 54-2, EN 54-4, EN 54-13
- Third-party Certification
- 0370-CPR-0994
Battery
- Battery Capacity
- 2 x 7.5 Ah
Physical
- Operating Temperature
- -5 … +50 °C (23 … 122 °F)
- Dimensions
- 443 × 268 × 109 mm (17.44 × 10.55 × 4.29 in)
- Weight
- 1.9 kg (4.19 lb)
