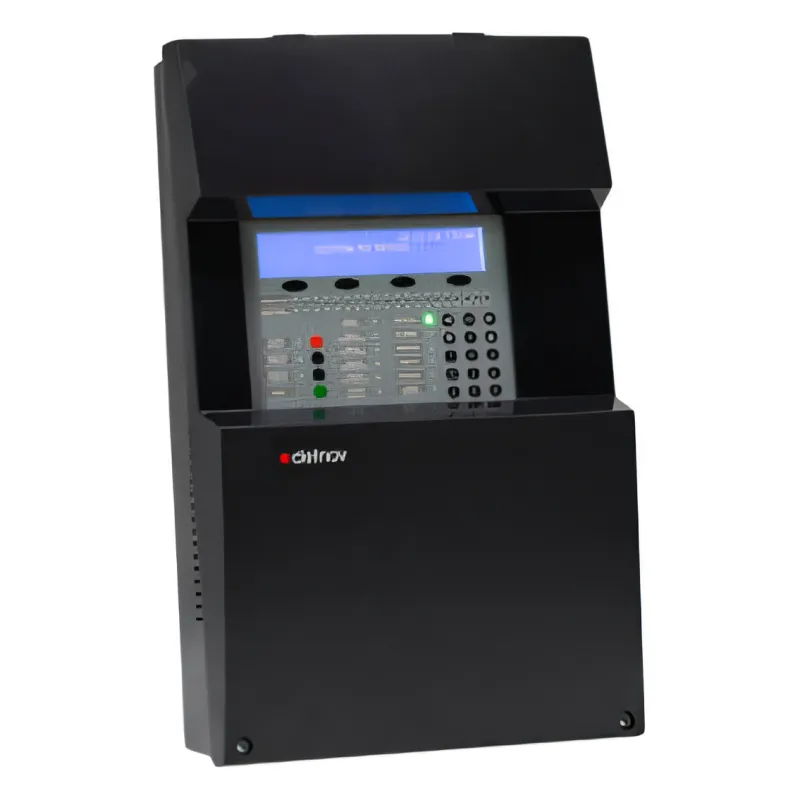

Fire alarm control panel, Detnov, CAD-150-1

The Detnov CAD-150-1 is an addressable fire alarm control panel with 1 loop. It supports up to 250 devices on the loop and has 2 monitored siren outputs.

The panel can be connected in a network of up to 32 nodes, which may be control panels or repeaters. It runs on a mains supply of 90–264 V AC at 50/60 Hz and takes 2 x 7.5 Ah batteries. It conforms to EN 54-2, EN 54-4 and EN 54-13.

Key features:

• Addressable system with 1 loop and 250 devices per loop
• 2 monitored siren outputs, 500 mA each
• Networking of up to 32 nodes (control panels or repeaters)
• Mains voltage 90–264 V AC, 50/60 Hz; standby current 165 mA @ 24 V DC
• Battery capacity 2 x 7.5 Ah
• Standards EN 54-2, EN 54-4, EN 54-13; certification 0370-CPR-0994
• IP30 protection; operating temperature -5 … +50 °C (23 … 122 °F); dimensions 443 × 268 × 109 mm (17.44 × 10.55 × 4.29 in); weight 1.9 kg (4.19 lb)
