Product code: #ALL-002559

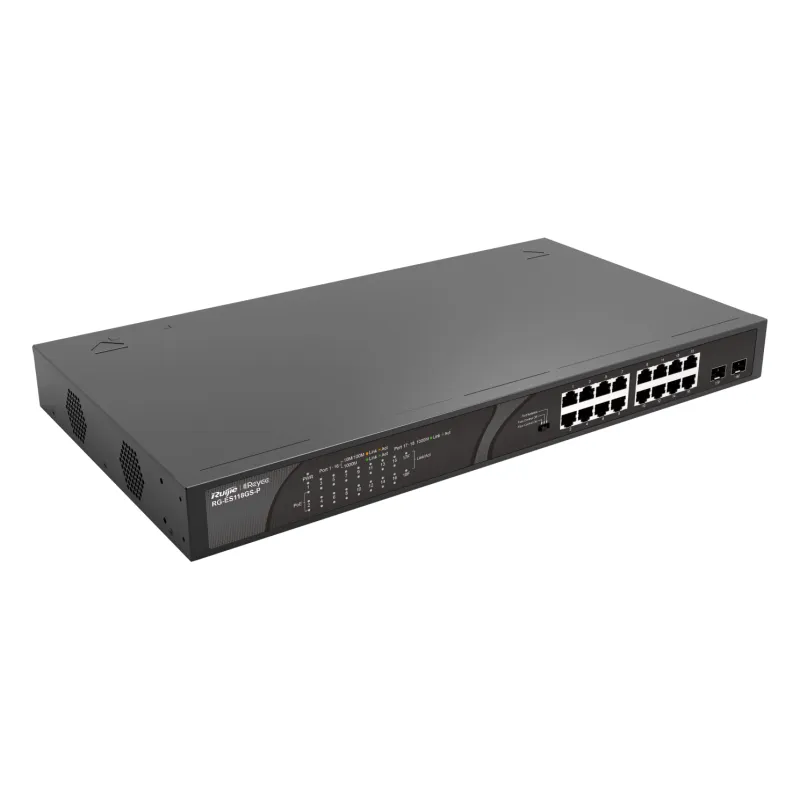

Switch, POE RG-ES118GS-P POE Budget 120W

Ruijie

Switch, POE RG-ES118GS-P POE Budget 120W

  • Total Ports18
  • Port SpeedGigabit (10/100/1000 Mbps)
  • PoE Budget247 W
888 ₾

VAT included

  • In stock
888 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

PoE budget

Powers 16 cameras at 6.5 W each

Calculate exactly

Compare with similar

Full comparison

Description

The Ruijie RG-ES118GS-P is an unmanaged PoE switch with 18 Gigabit ports (10/100/1000 Mbps), 16 of which provide PoE. It also has 2 SFP ports for uplink connections, and its PoE budget is 247 W.

The switch supports the 802.3af (PoE) and 802.3at (PoE+) standards. It has a metal housing and mounts in a rack, with dimensions of 440 × 44 × 240 mm (17.32 × 1.73 × 9.45 in).

Key features:

  • 18 ports in total, 16 of them PoE ports, with a port speed of 10/100/1000 Mbps
  • 2 × 1GE SFP uplink ports and 2 × 1GE SFP slots
  • PoE standards 802.3af (PoE) and 802.3at (PoE+), with a PoE budget of 247 W
  • Switching capacity of 36 Gbps and forwarding rate of 26.8 Mpps
  • Input power of 100 V AC to 240 V AC, 50 Hz to 60 Hz, with power consumption of 297 W and surge protection of 6 kV
  • Operating temperature of 0 … +45 °C (32 … 113 °F), with CE certification
  • Rack mounting, metal housing, 440 × 44 × 240 mm (17.32 × 1.73 × 9.45 in)

Bought together

−5%

The kit is ready, adjust it as you need

PoE switch + 1 accessory

Kit · 870.72 ₾916.72 ₾

Kit −46 ₾

Specifications 19

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Input
100 V AC to 240 V AC, 50 Hz to 60 Hz
Power Consumption
297 W
Fanless
No
Surge Protection
6 kV

Ports & PoE

PoE Ports
16
Total Ports
18
SFP ports
2
Port Speed
Gigabit (10/100/1000 Mbps)
PoE Standard
802.3af (PoE), 802.3at (PoE+)
PoE Budget
247 W
Uplink Ports
2 × 1GE SFP
SFP Slots
2 × 1GE SFP

Performance

Switching Capacity
36 Gbps
Forwarding Rate
26.8 Mpps

Compliance

Certifications
CE

Physical

Form Factor / Chassis
Metal
Operating Temperature
0 … +45 °C (32 … 113 °F)
Mounting
Rack
Dimensions
440 × 44 × 240 mm (17.32 × 1.73 × 9.45 in)
