Product code: #ALL-003319

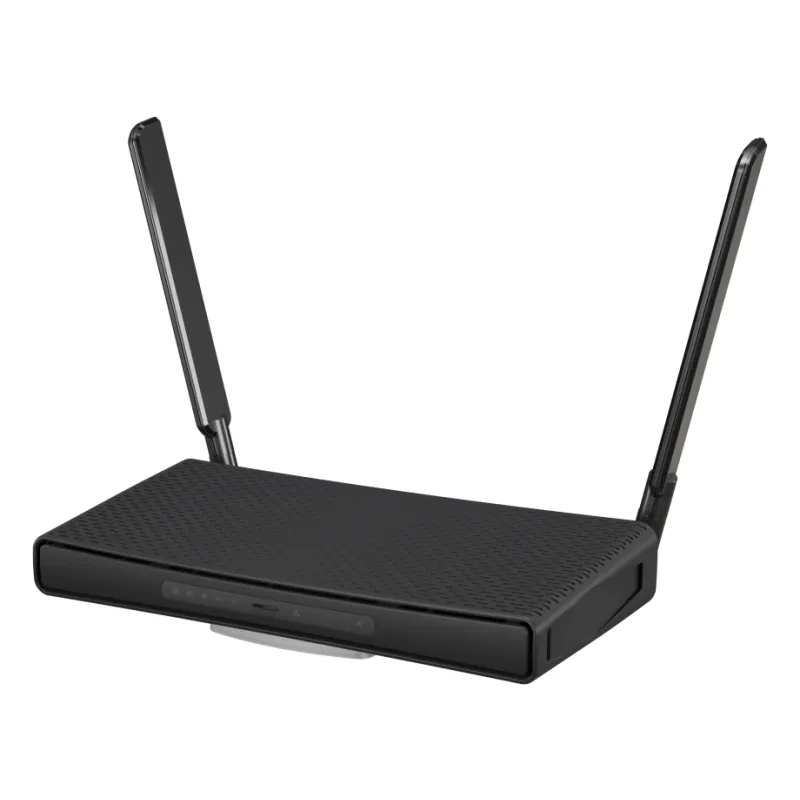

WiFi router - hAP ax³, MikroTik

MikroTik · C53UiG+5HPaxD2HPaxD

WiFi router - hAP ax³, MikroTik

  • Wi-Fi GenerationWi-Fi 6 (802.11ax)
  • Total Ports5
529.99 ₾

VAT included

  • In stock
529.99 ₾

VAT included

  • In stock
Quantity
1

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Compare with similar

Full comparison

Description

The MikroTik hAP ax³ (model C53UiG+5HPaxD2HPaxD) is a Wi-Fi 6 (802.11ax) router with dual-band wireless on 2.4 GHz and 5 GHz. It runs RouterOS with License level 6 and is built around a Quad-Core IPQ-6010 ARM 64bit CPU at 1.8 GHz, with 1 GB of RAM and 128 MB of NAND storage.

The router has 5 Ethernet ports: 4 at 1G and 1 at 2.5G that supports PoE-in and PoE-out. It also has a USB 3 type A port. It can be powered through PoE-in or a DC jack, and it operates in temperatures from -40 to +70 °C.

Key features:

  • Wi-Fi 6 (802.11ax) with backward support for 802.11a, 802.11b, 802.11g, 802.11n and 802.11ac on 2.4 GHz and 5 GHz
  • Dual-chain wireless: 2.4 GHz 802.11b/g/n/ax and 5 GHz 802.11a/n/ac/ax, with antenna gain of 3.3 dBi (2.4 GHz) and 5.5 dBi (5 GHz)
  • Transmitter power of 29 dBm on 2.4 GHz and 28 dBm on 5 GHz
  • 5 Ethernet ports: 4 x 1G and 1 x 2.5G with PoE-in/out, plus 1 USB 3 type A port
  • 2 power inputs: PoE-in 18-28 V (passive PoE) and DC jack 12-28 V, with 15 W total PoE-out output
  • Quad-Core IPQ-6010 ARM 64bit CPU at 1.8 GHz, 1 GB RAM and 128 MB NAND memory
  • Dimensions of 251 × 130 × 39 mm (9.88 × 5.12 × 1.54 in), with an operating temperature range of -40 … +70 °C (-40 … 158 °F)

Specifications 45

Open the spec sheet PDF(opens in a new tab)

Wi-Fi

Wi-Fi Generation
Wi-Fi 6 (802.11ax)
Wi-Fi Standard
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Wi-Fi Frequency Bands
2.4 GHz, 5 GHz
Max. Antenna Gain
5.5 dBi2.4 GHz: 3.3 dBi;
5 GHz: 5.5 dBi
Transmit Power
2.4 GHz: 29 dBm, 5 GHz: 28 dBm

Power & Protection

Power Input
PoE-in 18-28 V, DC jack 12-28 V
Power Consumption
38 W

Ports & PoE

PoE Ports
1
Total Ports
5
PoE Standard
Passive PoE

Physical

Operating Temperature
-40 … +70 °C (-40 … 158 °F)
Dimensions
251 × 130 × 39 mm (9.88 × 5.12 × 1.54 in)

Full specification

Manufacturer data, 33 parameters

Specifications

Product code
C53UiG+5HPaxD2HPaxD
CPU
Quad-Core IPQ-6010 1.8 GHz
CPU Architecture
ARM 64bit
Size of RAM
1 GB
Storage
128 MB, NAND
Number of 1G Ethernet Ports
4
Number of 2.5G Ethernet ports
1 (supports PoE-in/out)
USB
1 USB 3 type A
Switch Chip Model
IPQ-6010
Wireless Interface Model
QCN-5022 (2.4 GHz), QCN-5052 (5 GHz)
Wireless
2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
Wireless Antenna Max. Gain
2.4 GHz (3.3 dBi), 5 GHz (5.5 dBi)
Operating System
RouterOS, License level 6

Powering

Number of DC Inputs
2 (PoE-in, DC jack)
PoE-In Input Voltage
18-28 V
DC Jack Input Voltage
12-28 V
PoE-out total output power
15 W
Power Adapter Nominal Voltage
24 V
Power Adapter Nominal Current
1.5 A

Wireless specifications

Rate (2.4 GHz) 1MBit/s
Tx (dBm) 27;
Rx (dBm) -100
Rate (2.4 GHz) 11MBit/s
Tx (dBm) 27;
Rx (dBm) -94
Rate (2.4 GHz) 6MBit/s
Tx (dBm) 29;
Rx (dBm) -96
Rate (2.4 GHz) 54MBit/s
Tx (dBm) 27;
Rx (dBm) -80
Rate (2.4 GHz) MCS0
Tx (dBm) 29;
Rx (dBm) -96
Rate (2.4 GHz) MCS7
Tx (dBm) 26;
Rx (dBm) -75
Rate (2.4 GHz) MCS9
Tx (dBm) 24;
Rx (dBm) -70
Rate (2.4 GHz) MCS11
Tx (dBm) 22;
Rx (dBm) -67
Rate (5 GHz) 6MBit/s
Tx (dBm) 28;
Rx (dBm) -96
Rate (5 GHz) 54MBit/s
Tx (dBm) 26;
Rx (dBm) -80
Rate (5 GHz) MCS0
Tx (dBm) 28;
Rx (dBm) -96
Rate (5 GHz) MCS7
Tx (dBm) 25;
Rx (dBm) -75
Rate (5 GHz) MCS9
Tx (dBm) 23;
Rx (dBm) -70
Rate (5 GHz) MCS11
Tx (dBm) 20;
Rx (dBm) -67
