Product code: #ALL-004217

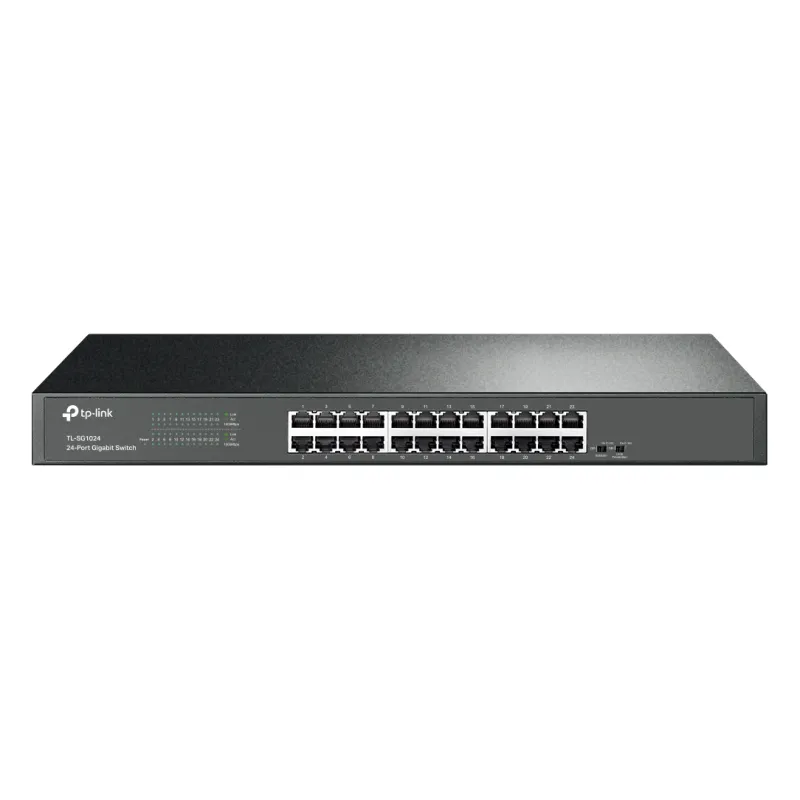

TP-Link, TL-SG1024, 24-port Gigabit Switch, 24 10/100/1000

TP-Link

TP-Link, TL-SG1024, 24-port Gigabit Switch, 24 10/100/1000

  • Total Ports24
  • Port SpeedGigabit (10/100/1000 Mbps)

Not on sale right now

This model is not on sale right now. Ask us and we will tell you when it is back or what can replace it.

Similar, in stock

From the same category, closest in specs and price

Compare all four

PaymentBy cardBy bank transfer
Datasheet (opens in a new tab)

Related products

Description

The TP-Link TL-SG1024 is an unmanaged 24-port Gigabit switch with 24 RJ45 ports running at 10/100/1000 Mbps. It has no management interface, and it supports Auto Negotiation and Auto MDI/MDIX on its ports.

The switch is built as a rackmount unit with a 440 × 44 × 180 mm (17.32 × 1.73 × 7.09 in) body. It is fanless, uses Store-and-Forward transmission, and has Power, 1000Mbps and Link/Act LED indicators.

Key features:

  • 24 10/100/1000Mbps RJ45 ports with Auto Negotiation and Auto MDI/MDIX
  • 48 Gbps bandwidth, 35.7 Mpps forwarding rate, 8K MAC table and 10KB Jumbo Frame support
  • Supports IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
  • 802.1p/DSCP QoS (V11 and later), loop prevention, and isolation mode for ports 1-22
  • Fanless design with 13.36 W power consumption and 46.44BTU/h maximum heat dissipation
  • Input of 100-240VAC, 50/60Hz; operating temperature 0 … +40 °C (32 … 104 °F) and operating humidity 10%~90% non-condensing
  • Rack mounting, with CE and FCC certifications

Specifications 29

Open the spec sheet PDF(opens in a new tab)

Power & Protection

Power Input
100-240VAC, 50/60Hz
Power Consumption
13.36 W
Fanless
Yes

Ports & PoE

Total Ports
24
Port Speed
Gigabit (10/100/1000 Mbps)

Performance

Management
Unmanaged
Switching Capacity
48 Gbps
Forwarding Rate
35.7 Mpps
MAC Table
8K

Features

QoS
802.1p/DSCP QoS (V11 and later)
Loop Prevention
Yes

Compliance

Certifications
CE, FCC

Physical

Form Factor / Chassis
Rackmount
Operating Temperature
0 … +40 °C (32 … 104 °F)
Mounting
Rack
Dimensions
440 × 44 × 180 mm (17.32 × 1.73 × 7.09 in)

Full specification

Manufacturer data, 13 parameters

Hardware Features

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m);
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
Fanless
Max Heat Dissipation
46.44BTU/h
Isolation Mode
Yes (For Ports 1-22)
LED
Power, 1000Mbps, Link/Act

Performance

Jumbo Frame
10KB
Transmission Method
Store-and-Forward

Others

Storage Temperature
-40℃~70℃ (-40℉~158℉)
Operating Humidity
10%~90% non-condensing
Storage Humidity
5%~90% non-condensing

Features & Performance

Forwarding mode
Store-and-Forward
